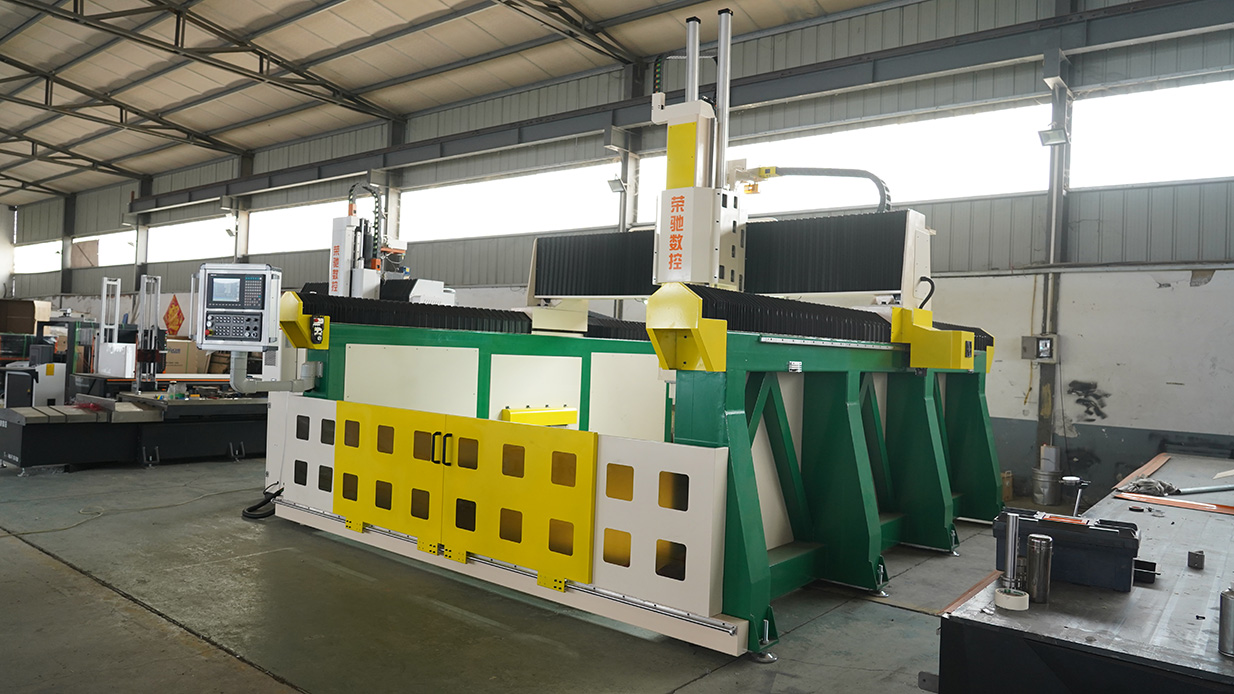

Model：RC2030

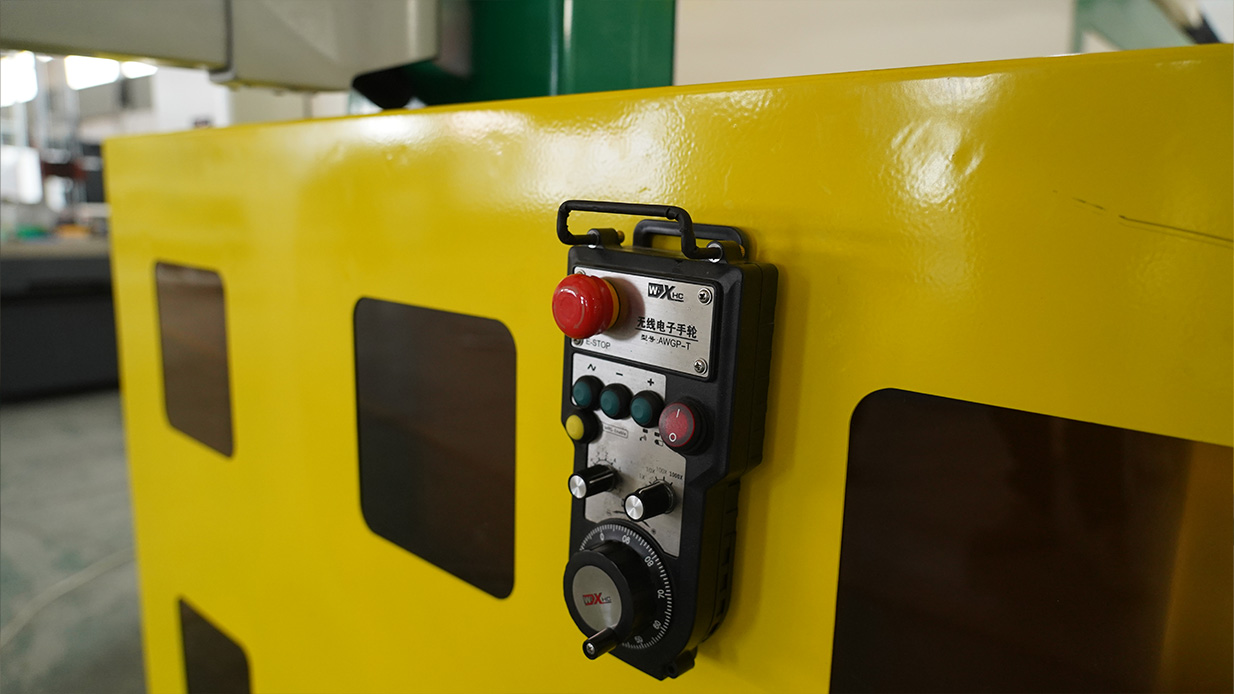

Control system ：Taiwan Syntec 5 axis (wireless remote) RTCP

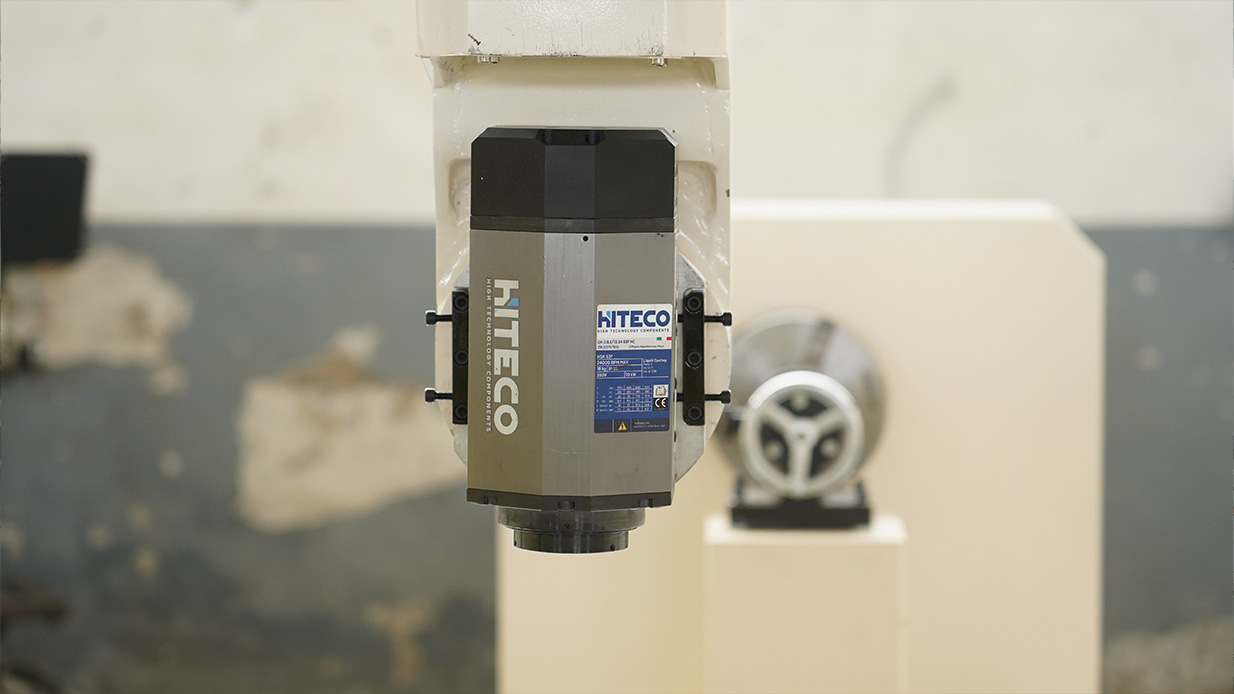

Spindle ：Italy Hiteco
Spindle speed ：18000 RPM
Guiding rails：high precision linear square
Rack-pinion：High level 2M helical
Driving motor：Japanese Yaskawa servo, Z axis with break
| Specification |
| Parameters |
| Model |
| RC2030 |
| Working size | X axis | 2000mm |
| Y axis | 3000mm |
| Z axis | 1300 mm |

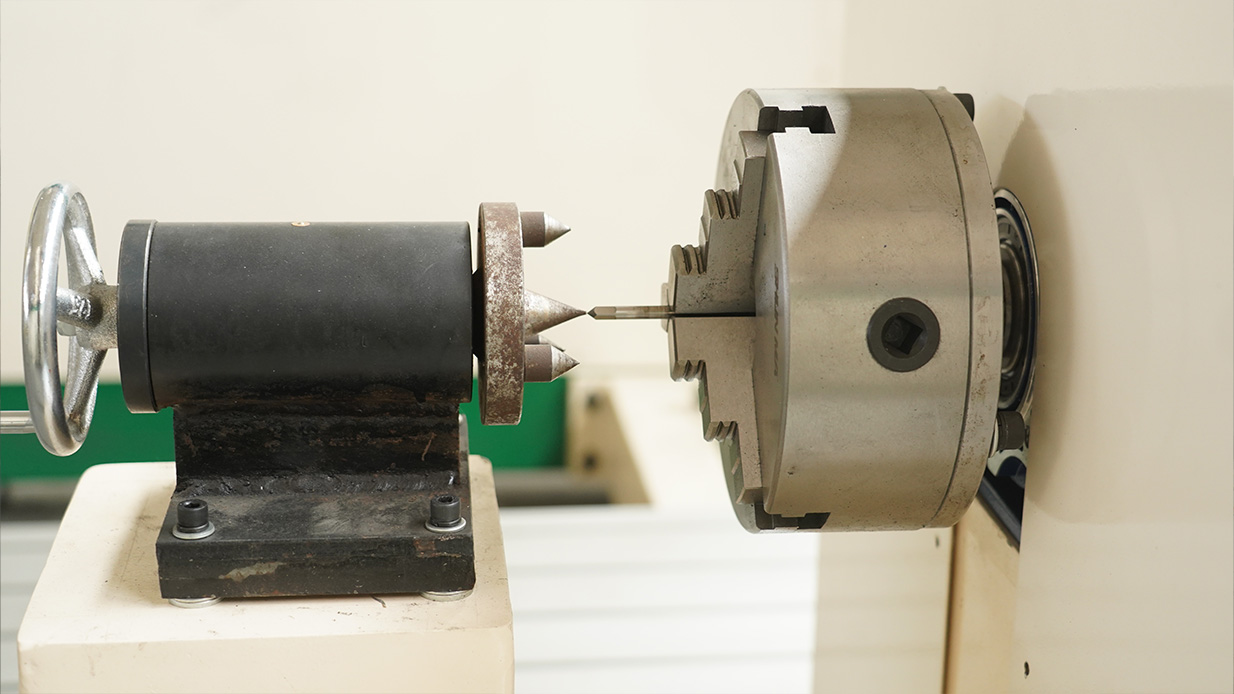

| Rotary clamping | φ1000mm |
| 2500mm |
| Control system |
| Taiwan Syntec 5 axis (wireless remote) RTCP |
| Spindle |
| Italy Hiteco |
| Spindle speed |
| 18000 RPM |
| Guiding rails |
| high precision linear square |
| Rack-pinion |
| High level 2M helical |
| Driving motor |
| Japanese Yaskawa servo, Z axis with break |
| Reducer |
| Japanese plantery shimpo |
Applications ：
All type of non-metal molds prcoessing, composite material(Vacuum molded products trimming and cutting,windpower covers,FRP products cutting,fiberglass male molds,military PMI plastic,vacuum mold ,body box panel)
Foam molds(landscape sculpture,lost foam,casting steel mold)
Wooden molds(casting steel wooden mold,automotive male mold,aerospace complex special mold,sold wood furniture)
Performance ：
◆ Refined thicken square steel tube welded, annealing shot blasting treatment. 5 sides CNC prcoessing center milled,ensure machine stable working performance.
◆ Whole machine choose imported configuration, high precision fast speed.
◆ RTCP function, cutter end following, 5-axis linkage real 5 axis processing center.
◆ Splited machine body, easy to transport and installment.
◆ Customized size, customized specification available.
